The Ludger Dam’s crest gates, rebuilt in 1993, were corroded, and their seals had reached the end of their service life. Limited access complicated maintenance, requiring interventions from the downstream apron. Water infiltration was observed in embedded parts, and the lack of a suspension system in the raised position created operational challenges.
Direction générale des barrages, Ministère de l'environnement du Québec.
2023
Saint-Agathe-des-Monts, Québec
Engineering, Manufacturing, Site Supervision, Installation.

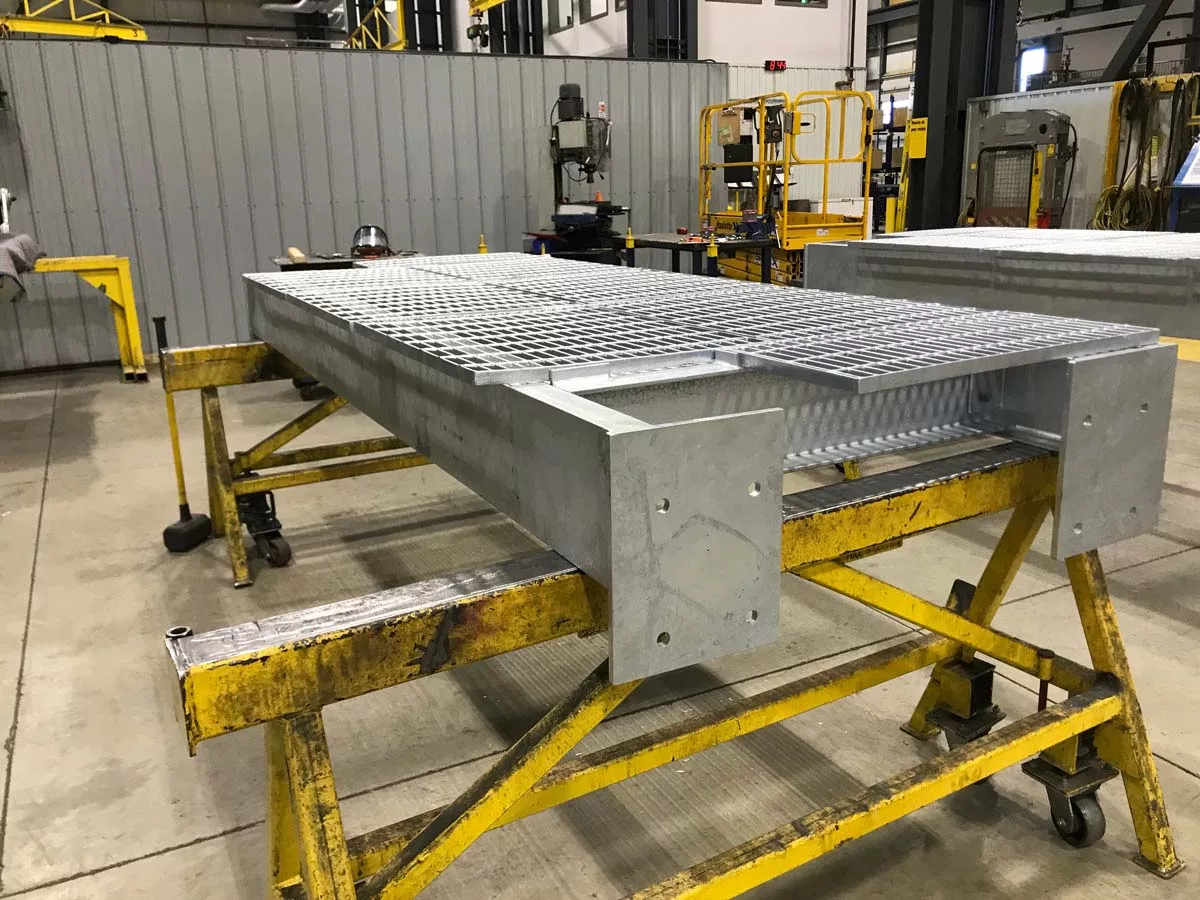

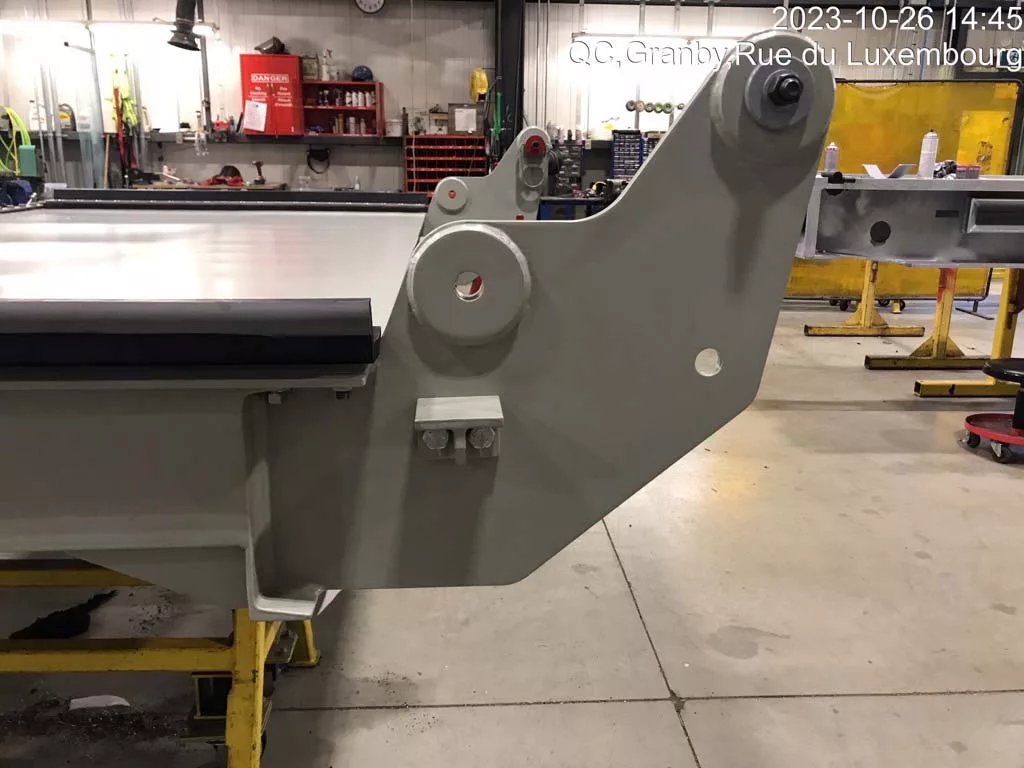

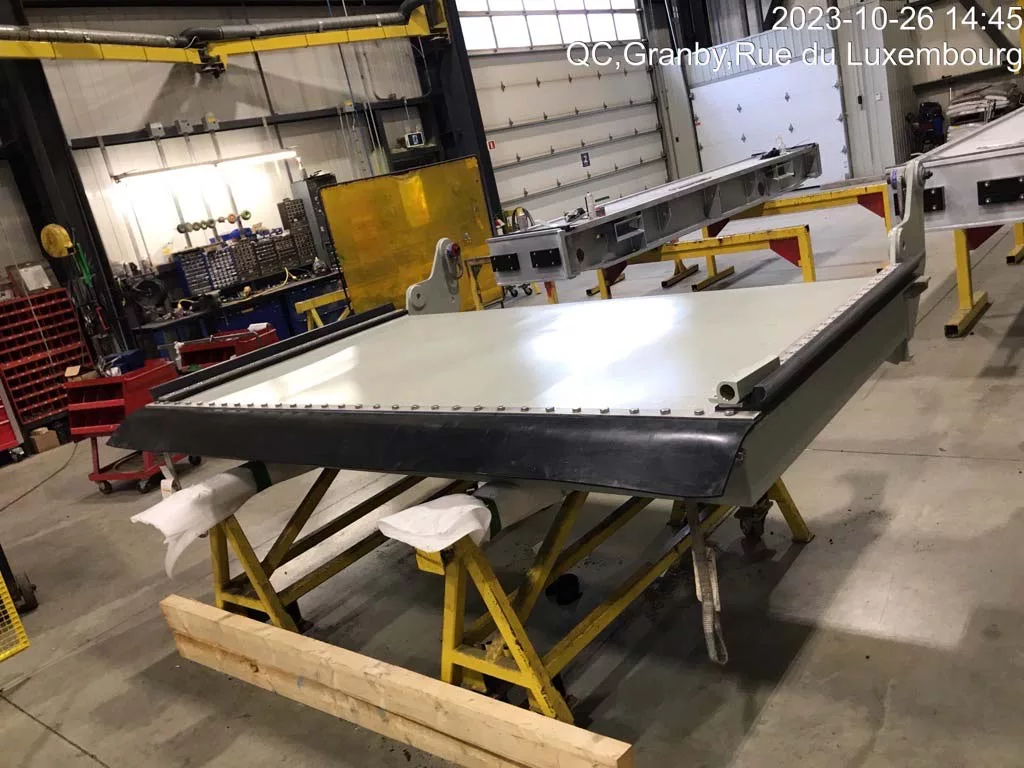

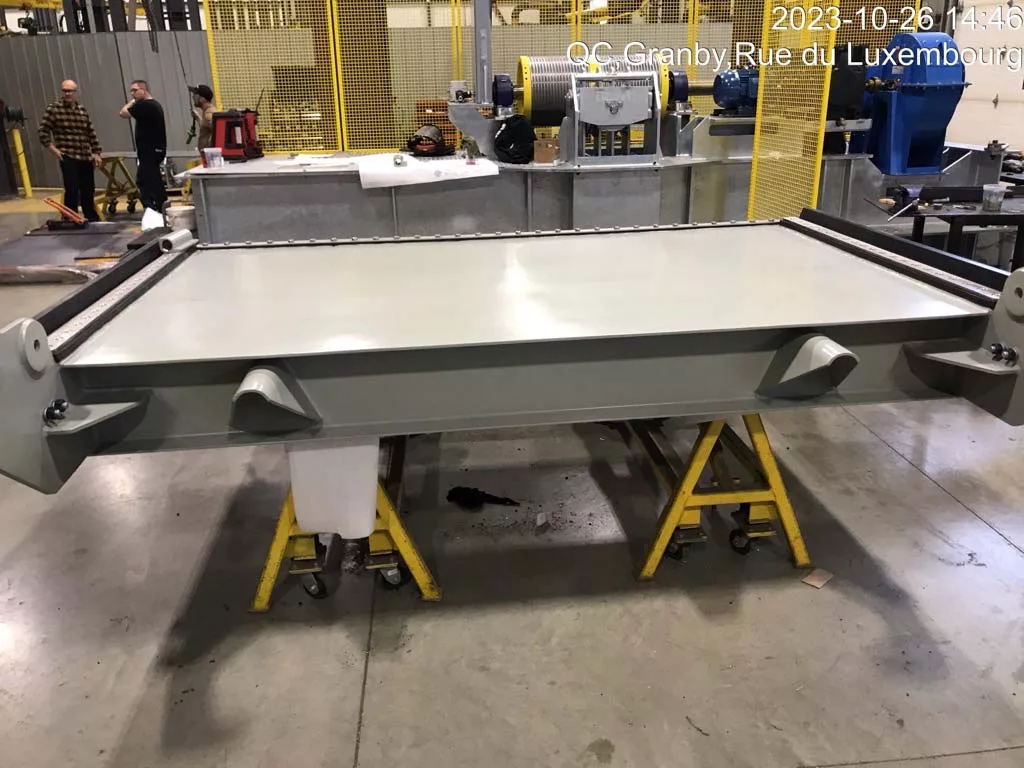

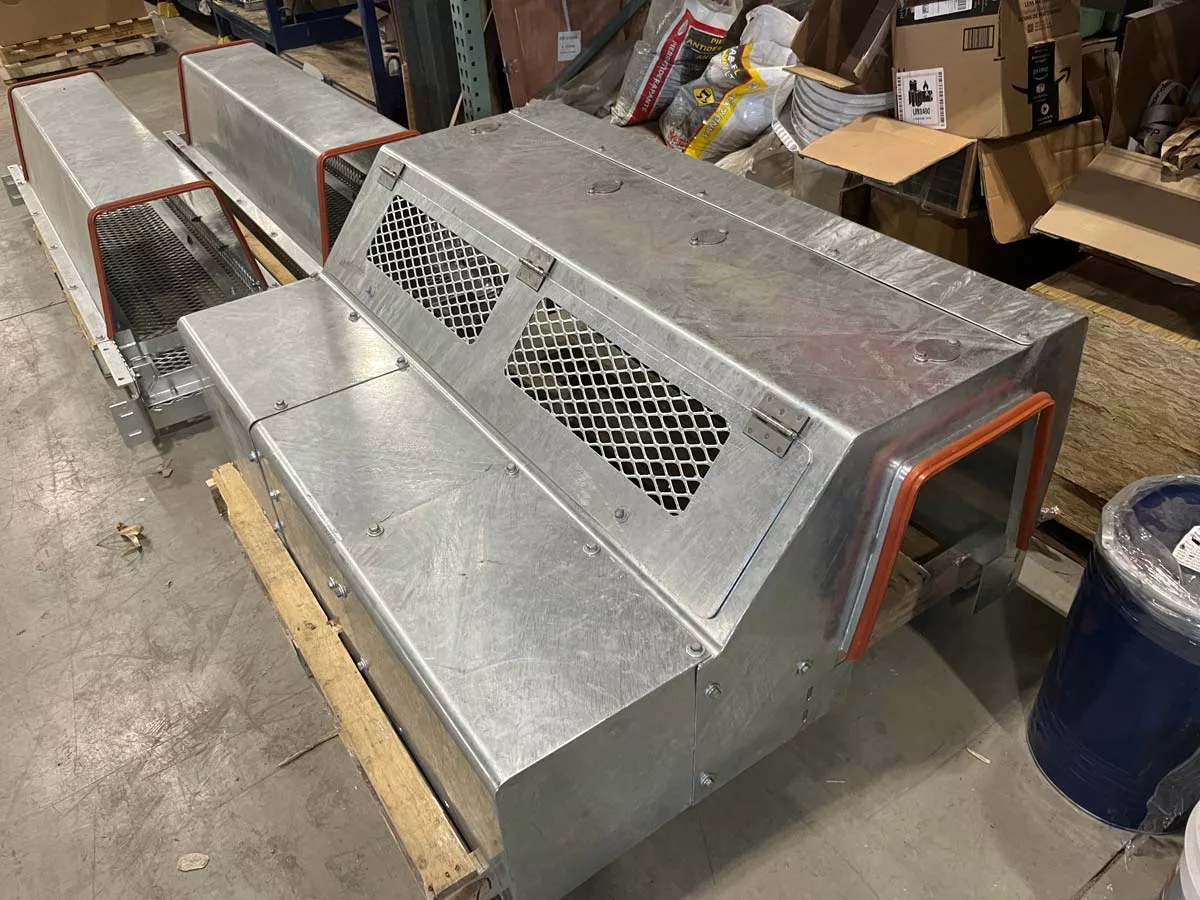

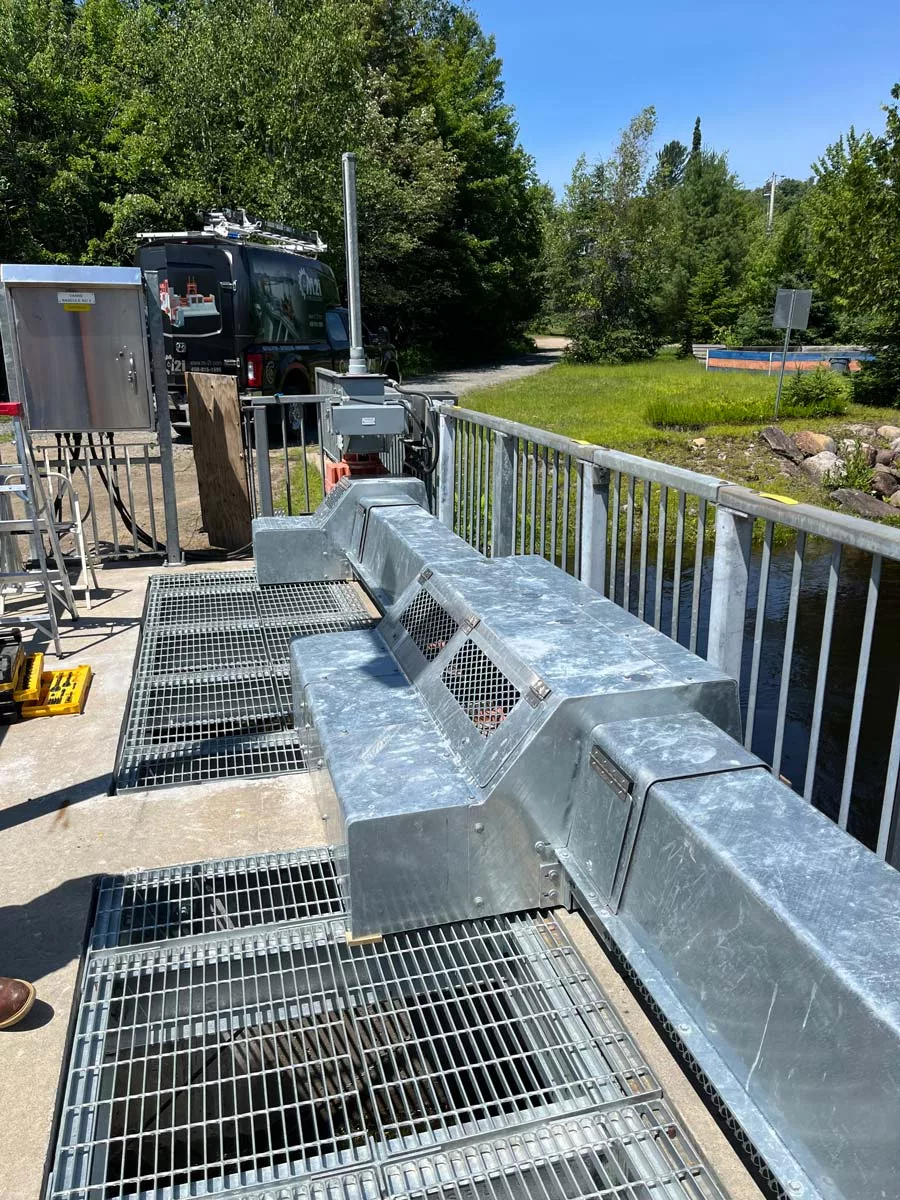

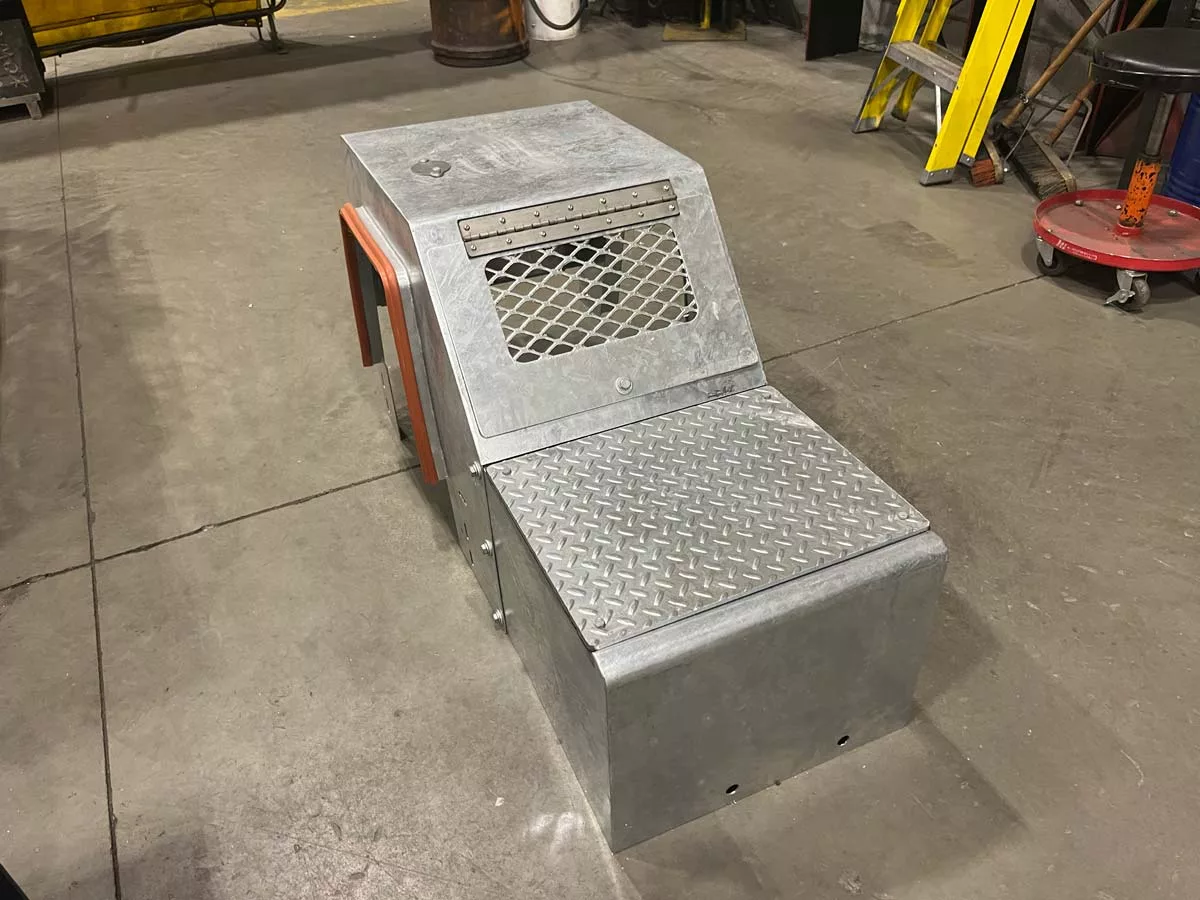

Fabrication and installation of two new crest gates to replace the existing corroded bascule gates. Design, fabrication, and installation of new grating and guards to improve operator safety. The project also addresses accessibility challenges and operational efficiency by enhancing maintenance access and integrating protective measures for moving components.
