configuration & Flexibility section
Whether your site requires a deck-mounted or overhead structure, our systems combine precision engineering with rugged construction to deliver optimal performance year-round.
If your intake conditions require a unique approach, our engineering team can design a fully customized solution tailored to your site specifications—ensuring every project benefits from the same level of reliability and efficiency that defines Mecan-Hydro.
Trash Rake Configuration Options
Fixed Mounted on concrete deck
Downstream - Inclined Trash Rack
Rail Mounted on concrete deck
Downstream - Vertical Trash Rack

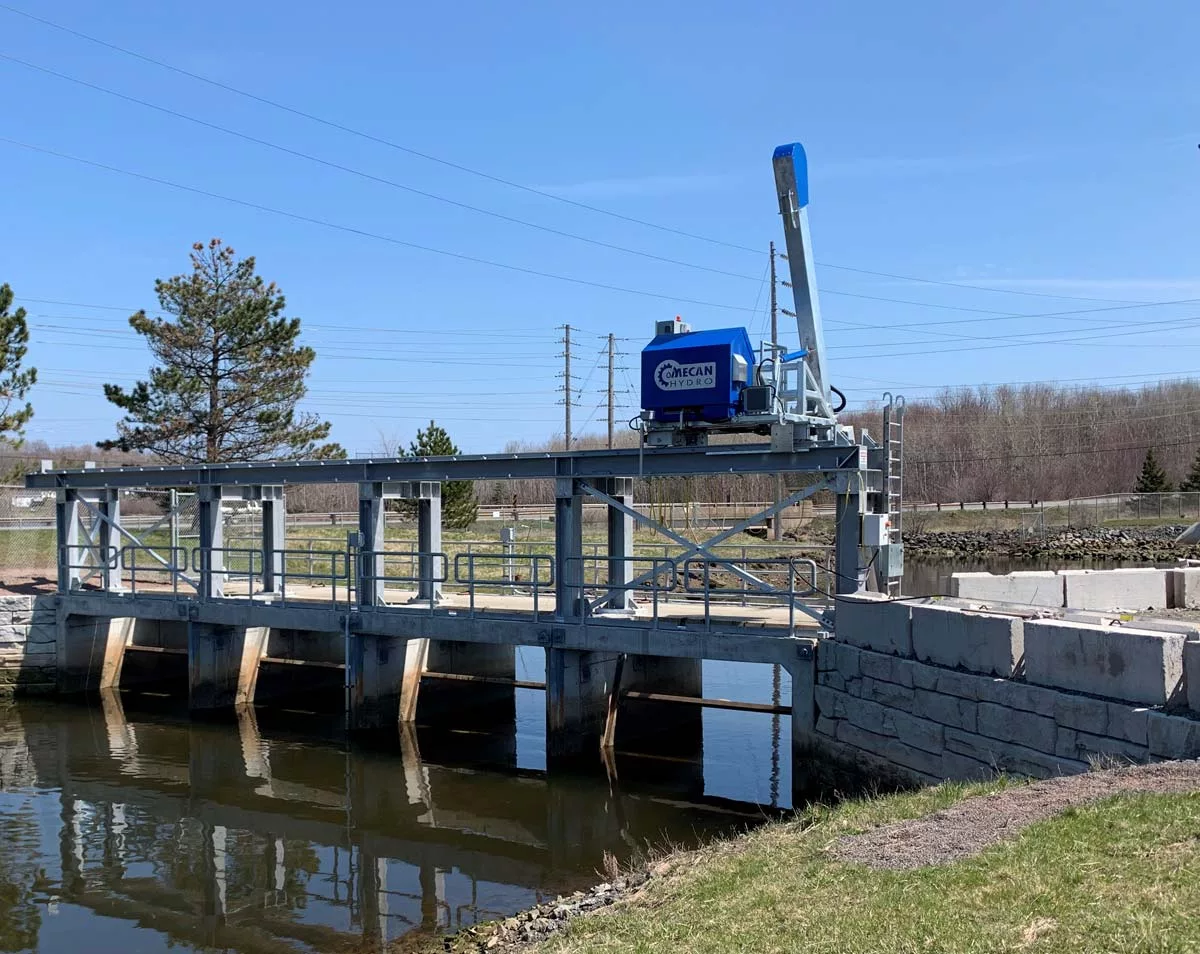

Rail Mounted on Overhead structure
Upstream - Inclined Trash Rack
Rail Mounted on Overhead structure
Downstream - Inclined Trash Rack
Rail Mounted on Vertical Wall
Upstream - Inclined Trash Rack
CHARACTERISTICS
Lifting capacity:
- From 0,5 TM (1,100 lbs) to 1 TM (2,200 lbs)
Raking depth (lifting stroke):
- From 3.05m (10ft) to 19.8m (65ft)
Rake boom design:
- Single arm
- Double arm
Power source:
- 600V/3/60
- 460V/3/60 ( USA)
Operating mode:
- Manual ( Wireless remote & HMI screen)
- Fully Automatic
Debris type:
- Claw weeds;
- Sea weeds;
- Rag weeds;
- Branches and leaves;
- Debris management:
- Containers
- Conveyor systems
- Directly on deck
Options:
- Jaw type cleaner head
- Scrapper
- Rotative brush
- And additional customs feature possibility.
