The Long Lake Control Dam, located approximately 37 km north of Terrace Bay, Ontario, regulates the flow of water into Hays Lake, which supplies the Aguasabon Generating Station. While the site offers vehicle access, direct access to the sluiceway deck is limited. To overcome this challenge, a UTV-rated bridge was constructed to reach the sluiceway area safely.
Ontario Power Generation (OPG)
2022
Terrace Bay, Ontario
Engineering, Manufacturing, Site Supervision, Installation.

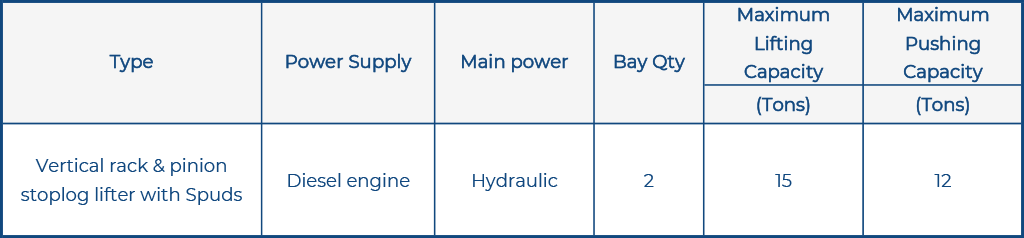

We designed, fabricated, and installed new log lifters for Dog Lake #2, Kenogami, and Long Lake Control Dams. Each unit featured a diesel engine powering a hydraulic system for precise spud column and traversing drive actuation. The machines were equipped with 100% oil containment for environmental protection.
