Vertical Rack & Pinion Stoplog Lifter Crane with Spuds

There are four different movements that can be executed with the log lifter

  • Left/right translation (X-Axis): To move from one spillway to another.
  • Upstream/downstream translation (Z-Axis): To move about the gate slot.
  • Lifting/lowering (Y-Axis): To lift and lower stoplogs.
  • Harpoon rotation (around Y-Axis): To lock/unlock stoplogs.
Share

A single hoist to manage all your bays!

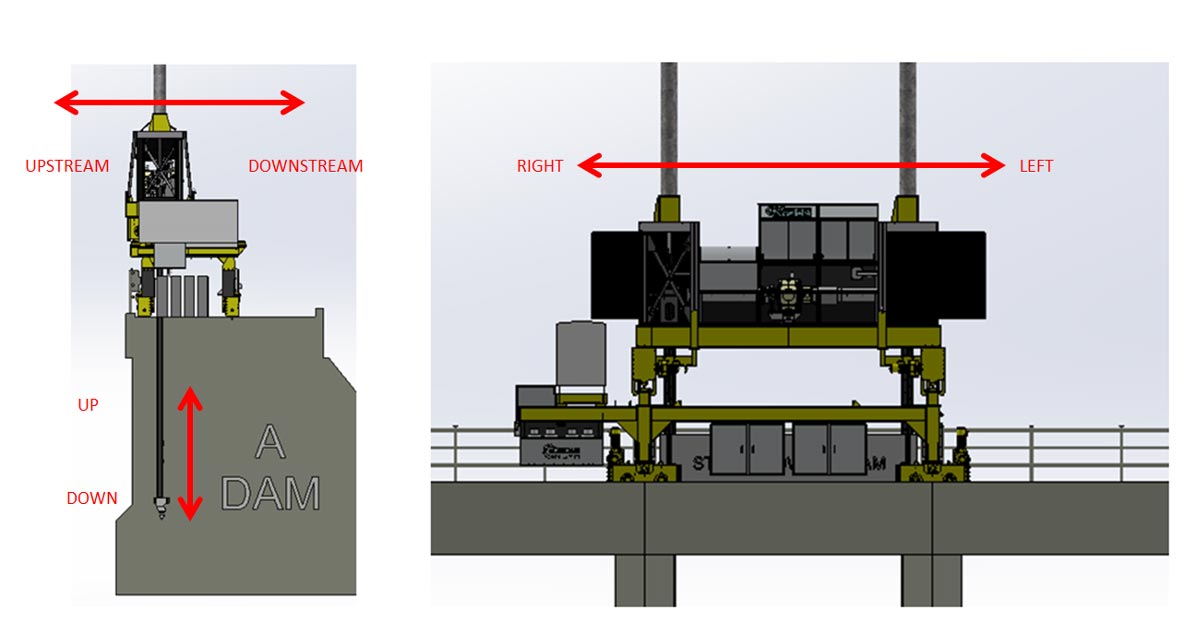

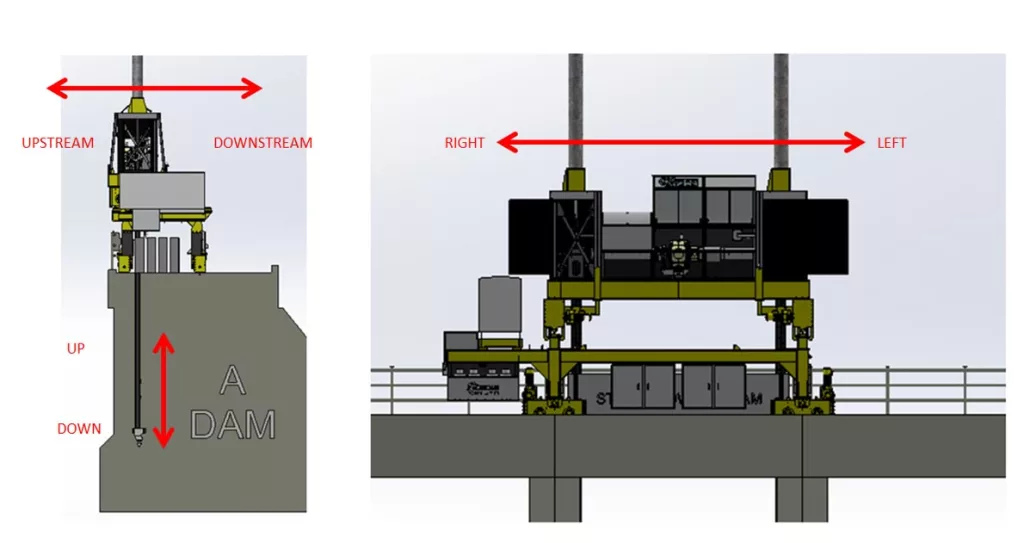

Stoplog Lifter Movements

Crane Rails
End Truck
Stoplogs Storage
Lifting Column
Rack & Pinion
Control Panels
Gantry Assembly
Spuds
Crane Assembly
Motorized Crane
Pockets

See our Stoplog lifter in action - Full Cycle Animation
