Swing Forward & Back Stoplog Lifter with Spuds

Stoplog Lifters

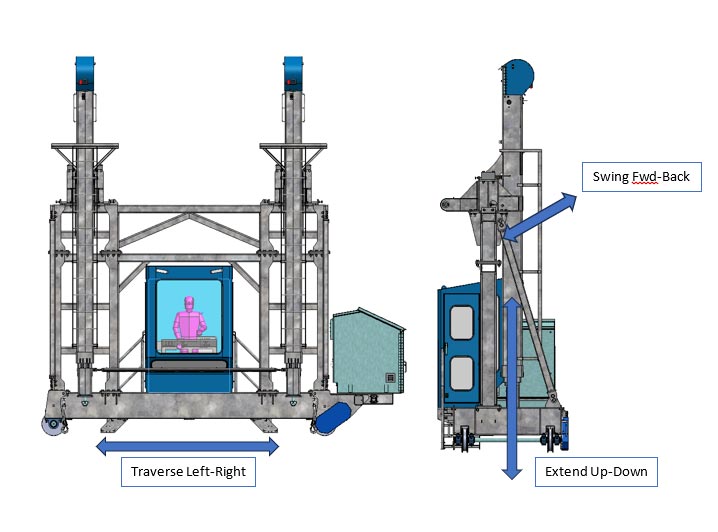

There are 4 different movements that can be executed with the Log Lifter

Left-Right translation (X-Axis): To move from one bay to another.
Lifting / lowering (Y-Axis): To extend or retract the arms.
Swing Fwd-Back : To tilt the arms for log stacking.
Harpoon rotation (Around Y-Axis) : To lock / unlock stoplogs.

Share

A single hoist to manage all your bays!

Stoplog Lifter Movements

Rail Spacing

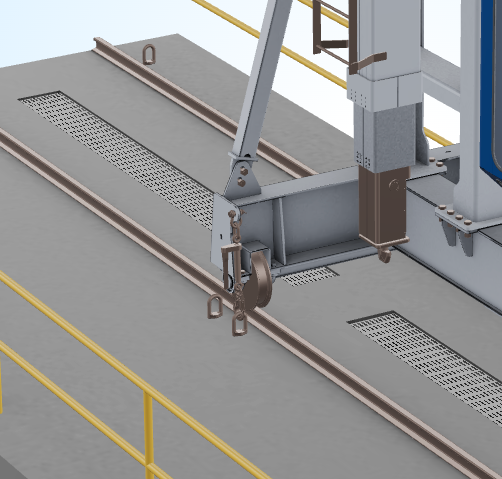

Tie-Downs

Arm Assembly

Arm Pivot

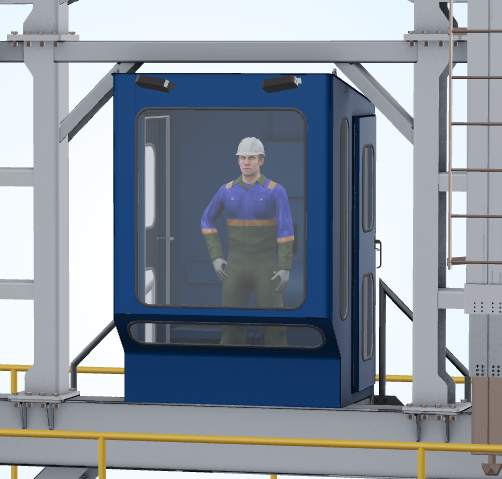

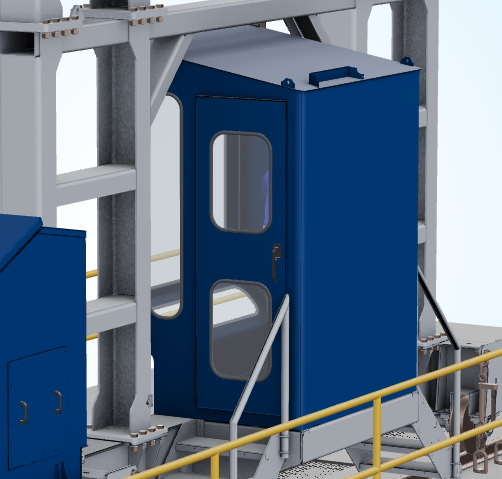

Operator Cabin

Stoplogs Storage

HPU Enclosure

See Our Stoplog Lifter in Action – Full Cycle Animation!
